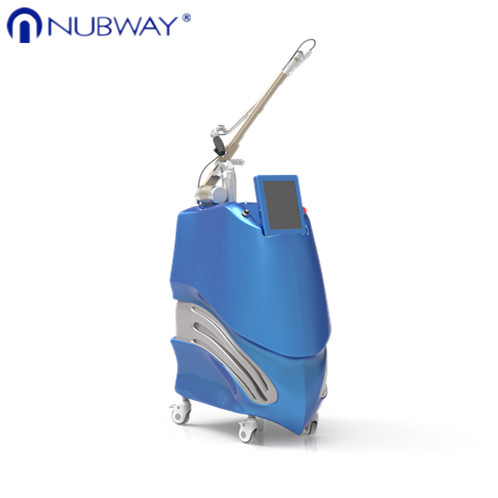

Professional Q Switch ND Yag Picosecond 600ps laser tattoo removal machine with Medical CE certification
The PicoSecond Laser uses ultra-short pulses (one trillionth of a second in length) to hit the melanin with a great pressure, the melanin shatters into tiny dust-like particles. Because the particles are so small, they are more readily absorbed and eliminated by the body. It is a quick and easy non-surgical ,non-invasive laser skin treamtent for the body.
The advantages of Picosecond laser compared with traditional lasers
More Effective and Faster Result:
Picosecond laser is 100 times faster than traditional nanosecond technology, as a result, the picosecond laser system breaks up tattoos faster than traditional lasers. Picosecond laser will shatter even tiny ink particles making it easier for the body to clear the tattoo ink.
Minimized Risk and Minimal Discomfort: The ultra-short pulses also optimize the delivery of energy to the targeted ink particles ensuring the ink is effectively treated, while the least amount of heat gets transferred into the skin, you’ll feel minimal discomfort throughout the procedure.
Technical Parameter
| Wavelength | 1064nm 532nm Standard; 585nm,650nm,755nm Optional |
| Energy | 10.8~81.1(10mm); 13.3~100.2(9mm); 16.9~126.8(8mm); 22.0~165.6(7mm); 30.0~225.4(6mm); 43.2~324.6(5mm); 67.6~507.3(4mm); 120.2~901.8(3mm); 270.5~2029.2(2mm) |
| Peak Power | 1064nm 1GW; 532nm 0.5GW |
| Frequency | 1~10Hz |
| Zoom Spot Size | 2~10mm Adjustable |
| Pulse Width | 600ps |
| Beam Profile | Top Hat Beam |
| Light Guiding System | South Koera 7 joints Arm |
| Aiming Beam | Diode 655 nm (Red), Adjustable Brightness |
| Voltage | AC220v±10% 50Hz,110v±10% 60Hz |
| Net Weight | 85KG |
| Dimension | 68*79*120cm |
Machine advantage:
South Korea imported 7 joint articulated arm
360 treatment without dead angle and ensure the highest energy output minimum energy loss during laser transmission.
2-10mm adjustable spot size.
Energy density is automatically adjusted with spot size
Variety of Wavelengths and handpieces Available
1064nm:Dermal pigment lesions and dark color tattoo removal
532nm: Epidermal pigment lesions,red, yellow, coffee tattoo removal
585nm:blue and purple tattoo removal
650nm:Green tattoo removal
755nm:Epidermal pigment lesions
Fractional Handpiece: wrinkle removal and skin rejuvenation
Flat-top hat Beam
Ensure that the energy is delivered efficiently to maximize effect while minimizing damage to surrounding tissue
Application
Tattoo Removal
Pigmented Lesions Treatment
Wrinkle Removal
Acne Scar Removal
Skin Resurfacing
“Carbon Laser Skin Rejuvenation” is a non invasive and pain-free laser treatment that is great for treating minor skin imperfections and giving skin a glow from within. This laser facial is delivered by a state of the art Q-switched Nd-Yag Laser machine producing short, rapid and high intensity pulses of light with maximum capability for destruction of debris clogged in the pores and upper layers of skin.
Our service :
Professional manufacture with 13 years experience, master the most advantage technologies of medical beauty equipment.
Professional R & D team, supply OEM & ODM service.your logo, outshape, language, interface can specially be designed on your machine
3 years warranty ,lifetime free service and maintenance, if there any problems happens with your machine, we will repair it free of charge
Fastest delivery time, we promise arrange delivery within 5 working days.
Professional after-sale service team, supply product training and 24 hours online service.
